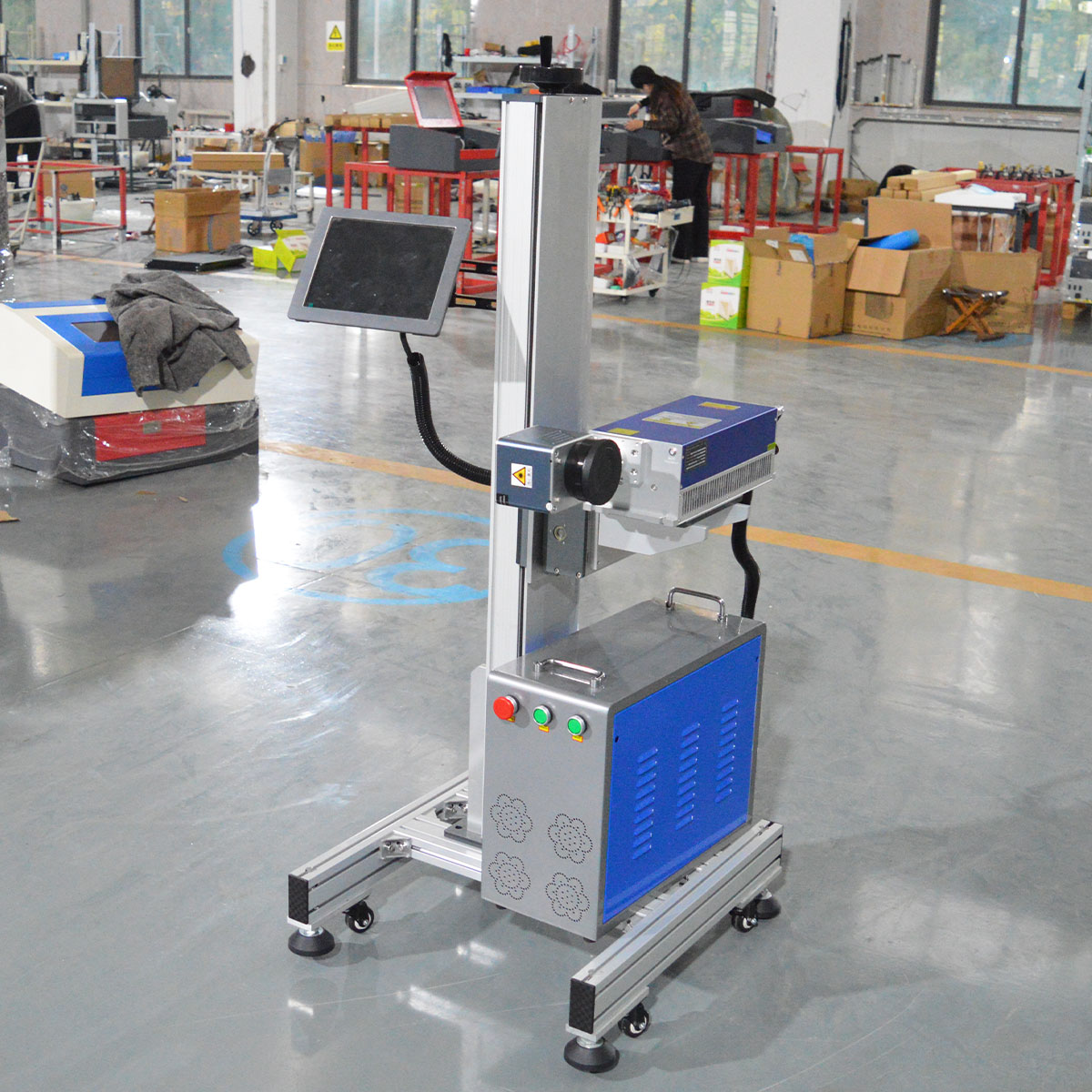

Flying laser marking machine

The flying laser marking machine is an advanced data marking equipment that uses laser technology to mark and engrave on various material surfaces.

Product Description

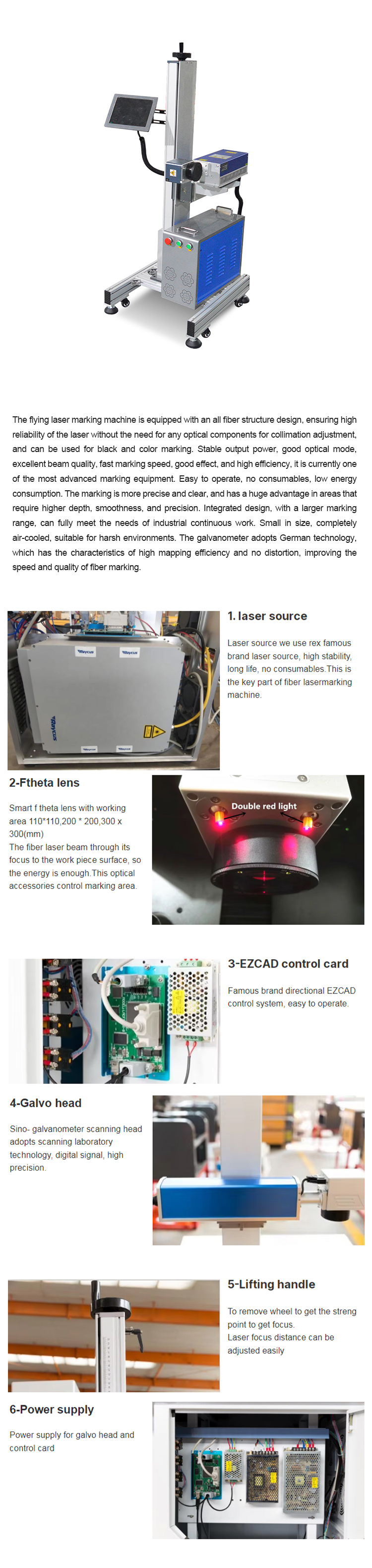

The flying laser marking machine is equipped with an all fiber structure design, ensuring high reliability of the laser without the need for any optical components for collimation adjustment, and can be used for black and color marking. Stable output power, good optical mode, excellent beam quality, fast marking speed, good effect, and high efficiency, it is currently one of the most advanced marking equipment. Easy to operate, no consumables, low energy consumption. The marking is more precise and clear, and has a huge advantage in areas that require higher depth, smoothness, and precision. Integrated design, with a larger marking range, can fully meet the needs of industrial continuous work. Small in size, completely air-cooled, suitable for harsh environments. The galvanometer adopts German technology, which has the characteristics of high mapping efficiency and no distortion, improving the speed and quality of fiber marking.

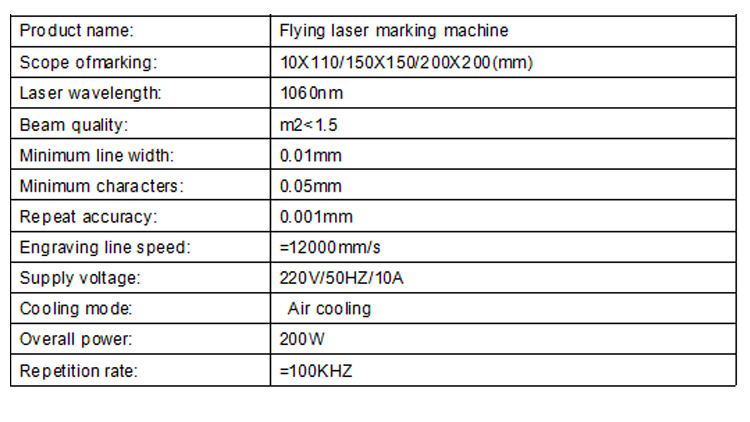

Product name:

Flying laser marking machine

Scope ofmarking:

10X110/150X150/200X200(mm)

Laser wavelength:

1060nm

Beam quality:

m2<1.5

Minimum line width:

0.01mm

Minimum characters:

0.05mm

Repeat accuracy:

0.001mm

Engraving line speed:

≤12000mm/s

Supply voltage:

220V/50HZ/10A

Cooling mode:

 Air cooling

Overall power:

200W

Repetition rate:

≤100KHZ
